  • Anakart: Gigabyte A50M S2H.
  • İşlemci: AMD Ryzen 5 3600X.
  • Ekran kartı: GTX 1080 Ti.
  • İşletim sistemi: Windows 11 Home.

Sistem boşta iken mavi ekran vermiş. Ben uyuyordum baktım yüzde 0'da kalmış. Reset attım minidump dosyası yok. Bundan 10 gün önce de mavi ekran vermiş minidump dosyası buldum 10 gün önceden. Kontrol eder misiniz rica etsem sorun nedir? https://drive.google.com/file/d/1A8b4aWcxNgUQkzxIDdAfP8GGSQFm-aDl/view?usp=sharing

Son düzenleyen: Moderatör:
Bu hataya ben de sık denk gelmiyorum. Yapay zekanın cevabını aşağıda vereceğim ama öncesinde BIOS sürümünüz güncel değil.

F19g sürümüne geçer misiniz?



  1. Hatalı Sürücü (En Yaygın): Üçüncü parti bir sürücü (ekran kartı, ağ kartı, depolama denetleyicisi, hatta bir antivirüs yazılımının kernel modu bileşeni vb.) kernel nesnelerinin referanslarını düzgün yönetemiyor olabilir. Hata çekirdek fonksiyonunda (nt!Obf...) ortaya çıksa da, asıl tetikleyici genellikle başka bir sürücüdür.
  2. Bellek (RAM) Sorunları: Arızalı RAM modülleri, verilerin bozulmasına ve bu tür tutarsızlıklara yol açabilir.
  3. Donanım Sorunları (Daha Az Olası): Nadiren de olsa, anakart veya depolama birimi ile ilgili sorunlar da dolaylı olarak bu hataya neden olabilir.

Kod:
REFERENCE_BY_POINTER (18)
Arguments:
Arg1: 0000000000000000, Object type of the object whose reference count is being lowered
Arg2: ffffd108e2a680c0, Object whose reference count is being lowered
Arg3: 0000000000000002, Reserved
Arg4: ffffffffffffffff, Reserved
    The reference count of an object is illegal for the current state of the object.
    Each time a driver uses a pointer to an object the driver calls a kernel routine
    to increment the reference count of the object. When the driver is done with the
    pointer the driver calls another kernel routine to decrement the reference count.
    Drivers must match calls to the increment and decrement routines. This BugCheck
    can occur because an object's reference count goes to zero while there are still
    open handles to the object, in which case the fourth parameter indicates the number
    of opened handles. It may also occur when the object's reference count drops below zero
    whether or not there are open handles to the object, and in that case the fourth parameter
    contains the actual value of the pointer references count.

Debugging Details:
------------------


KEY_VALUES_STRING: 1

    Key  : Analysis.CPU.mSec
    Value: 890

    Key  : Analysis.Elapsed.mSec
    Value: 5910

    Key  : Analysis.IO.Other.Mb
    Value: 0

    Key  : Analysis.IO.Read.Mb
    Value: 1

    Key  : Analysis.IO.Write.Mb
    Value: 0

    Key  : Analysis.Init.CPU.mSec
    Value: 296

    Key  : Analysis.Init.Elapsed.mSec
    Value: 4838

    Key  : Analysis.Memory.CommitPeak.Mb
    Value: 87

    Key  : Analysis.Version.DbgEng
    Value: 10.0.27793.1000

    Key  : Analysis.Version.Description
    Value: 10.2410.02.02 amd64fre

    Key  : Analysis.Version.Ext
    Value: 1.2410.2.2

    Key  : Bugcheck.Code.LegacyAPI
    Value: 0x18

    Key  : Bugcheck.Code.TargetModel
    Value: 0x18

    Key  : Dump.Attributes.AsUlong
    Value: 0x20008

    Key  : Dump.Attributes.KernelGeneratedTriageDump
    Value: 1

    Key  : Failure.Bucket
    Value: 0x18_OVER_DEREFERENCE_nt!ObfDereferenceObjectWithTag

    Key  : Failure.Hash
    Value: {4139309c-4e9f-52f0-ac5e-4041e7a86a20}


BUGCHECK_CODE:  18

BUGCHECK_P1: 0

BUGCHECK_P2: ffffd108e2a680c0

BUGCHECK_P3: 2

BUGCHECK_P4: ffffffffffffffff

FILE_IN_CAB:  031025-55078-01.dmp

DUMP_FILE_ATTRIBUTES: 0x20008
  Kernel Generated Triage Dump

FAULTING_THREAD:  ffffd108d63c7080

BLACKBOXBSD: 1 (!blackboxbsd)


BLACKBOXNTFS: 1 (!blackboxntfs)


BLACKBOXPNP: 1 (!blackboxpnp)


BLACKBOXWINLOGON: 1

CUSTOMER_CRASH_COUNT:  1

PROCESS_NAME:  System

STACK_TEXT:
fffffc8a`78d69948 fffff802`9b42db66     : 00000000`00000018 00000000`00000000 ffffd108`e2a680c0 00000000`00000002 : nt!KeBugCheckEx
fffffc8a`78d69950 fffff802`9b634fc7     : ffffd108`d9eb7000 00000000`00000000 ffffd108`d9eb7068 00000000`00000000 : nt!ObfDereferenceObjectWithTag+0x66
fffffc8a`78d69990 fffff802`9bb633de     : ffffd108`dcf23000 ffffd108`e2a680c0 00000000`00000000 ffffd108`d9eb7020 : nt!MmFreeAccessPfnBuffer+0x27
fffffc8a`78d699c0 fffff802`9bb622d0     : 00000000`00000001 ffffc100`cd928180 00000000`00000001 00000000`00000000 : nt!PfpFlushBuffers+0x35e
fffffc8a`78d69a80 fffff802`9b64fd8a     : ffffd108`d63c7080 ffffd108`d63c7080 fffff802`9bb62140 ffffd108`d63c6010 : nt!PfTLoggingWorker+0x190
fffffc8a`78d69bf0 fffff802`9b87a024     : ffffc100`cd928180 ffffd108`d63c7080 fffff802`9b64fd30 00000000`00000246 : nt!PspSystemThreadStartup+0x5a
fffffc8a`78d69c40 00000000`00000000     : fffffc8a`78d6a000 fffffc8a`78d64000 00000000`00000000 00000000`00000000 : nt!KiStartSystemThread+0x34


SYMBOL_NAME:  nt!ObfDereferenceObjectWithTag+66

MODULE_NAME: nt

IMAGE_NAME:  ntkrnlmp.exe

IMAGE_VERSION:  10.0.26100.3323

STACK_COMMAND:  .process /r /p 0xffffd108c76a4040; .thread 0xffffd108d63c7080 ; kb

BUCKET_ID_FUNC_OFFSET:  66

FAILURE_BUCKET_ID:  0x18_OVER_DEREFERENCE_nt!ObfDereferenceObjectWithTag

OSPLATFORM_TYPE:  x64

OSNAME:  Windows 10

FAILURE_ID_HASH:  {4139309c-4e9f-52f0-ac5e-4041e7a86a20}

Followup:     MachineOwner
---------

    PnpActivityId      : {00000000-0000-0000-0000-000000000000}
    PnpActivityTime    : 133858324981635413
    PnpEventInformation: 3
    PnpEventInProgress : 0
    PnpProblemCode     : 24
    PnpVetoType        : 0
    DeviceId           : SWD\MSDAS\{ce958e9a-424f-4c88-86f4-11314821e75a}
    VetoString         :

[SMBIOS Data Tables v3.3]
[DMI Version - 0]
[2.0 Calling Convention - No]
[Table Size - 2558 bytes]

[BIOS Information (Type 0) - Length 26 - Handle 0000h]
  Vendor                        American Megatrends International, LLC.
  BIOS Version                  F18
  BIOS Starting Address Segment f000
  BIOS Release Date             03/22/2024
  BIOS ROM Size                 1000000
  BIOS Characteristics
       07: - PCI Supported
       11: - Upgradeable FLASH BIOS
       12: - BIOS Shadowing Supported
       15: - CD-Boot Supported
       16: - Selectable Boot Supported
       17: - BIOS ROM Socketed
       19: - EDD Supported
       20: - NEC 9800 J-Floppy Supported
       21: - Toshiba J-Floppy Supported
       22: - 360KB Floppy Supported
       23: - 1.2MB Floppy Supported
       24: - 720KB Floppy Supported
       25: - 2.88MB Floppy Supported
       26: - Print Screen Device Supported
       28: - Serial Services Supported
       29: - Printer Services Supported
       30: - CGA/Mono Services Supported
       32: - BIOS Vendor Reserved
  BIOS Characteristic Extensions
       01: - USB Legacy Supported
       08: - BIOS Boot Specification Supported
       10: - Enable Targeted Content Distribution
       11: - UEFI Specification Supported
  BIOS Major Revision           5
  BIOS Minor Revision           17
  EC Firmware Major Revision    255
  EC Firmware Minor Revision    255
  Extended BIOS ROM Size        16 MB
[System Information (Type 1) - Length 27 - Handle 0001h]
  Manufacturer                  Gigabyte Technology Co., Ltd.
  Product Name                  A520M S2H
  Version                       -CF
  Serial Number                 Default string
  UUID                          00000000-0000-0000-0000-000000000000
  Wakeup Type                   Power Switch
  SKUNumber                     Default string
  Family                        A520 MB
[BaseBoard Information (Type 2) - Length 15 - Handle 0002h]
  Manufacturer                  Gigabyte Technology Co., Ltd.
  Product                       A520M S2H
  Version                       x.x
  Serial Number                 Default string
  Asset Tag
  Feature Flags                 09h
       00: - Motherboard
       03: - Replaceable
  Location                      Default string
  Chassis Handle                0003h
  Board Type                    0ah - Processor/Memory Module
  Number of Child Handles       0
[System Enclosure (Type 3) - Length 22 - Handle 0003h]
  Manufacturer                  Default string
  Chassis Type                  Desktop
  Version                       Default string
  Serial Number
  Asset Tag Number
  Bootup State                  Safe
  Power Supply State            Safe
  Thermal State                 Safe
  Security Status               None
  OEM Defined                   0
  Height                        0U
  Number of Power Cords         1
  Number of Contained Elements  0
  Contained Element Size        3
[Onboard Devices Information (Type 10) - Length 6 - Handle 0004h]
Note: The On Board Device Information (Type 10) struct is obsolete as of SMBIOs spec v2.6  Number of Devices             1
  01: Type                      Video [enabled]
  01: Description                  To Be Filled By O.E.M.
[OEM Strings (Type 11) - Length 5 - Handle 0005h]
  Number of Strings             1
   1                            Default string
[System Configuration Options (Type 12) - Length 5 - Handle 0006h]
[ (Type 256) - Length 9 - Handle 0008h]
[ (Type 256) - Length 31 - Handle 0009h]
[32Bit Memory Error Information (Type 18) - Length 23 - Handle 000ah]
[Physical Memory Array (Type 16) - Length 23 - Handle 000bh]
  Location                      03h - SystemBoard/Motherboard
  Use                           03h - System Memory
  Memory Error Correction       03h - None
  Maximum Capacity              134217728KB
  Memory Error Inf Handle       000ah
  Number of Memory Devices      4
[Memory Array Mapped Address (Type 19) - Length 31 - Handle 000ch]
  Starting Address              00000000h
  Ending Address                002fffffh
  Memory Array Handle           000bh
  Partition Width               02
  Extended Starting Address     0000000000000000h
  Extended Ending Address       0000000000000000h
[Memory Array Mapped Address (Type 19) - Length 31 - Handle 000dh]
  Starting Address              00400000h
  Ending Address                020fffffh
  Memory Array Handle           000bh
  Partition Width               02
  Extended Starting Address     0000000000000000h
  Extended Ending Address       0000000000000000h
[Cache Information (Type 7) - Length 27 - Handle 000eh]
  Socket Designation            L1 - Cache
  Cache Configuration           0180h - WBEnabled Int NonSocketed L1
  Maximum Cache Size            0180h - 384K
  Installed Size                0180h - 384K
  Supported SRAM Type           0010h - Pipeline-Burst
  Current SRAM Type             0010h - Pipeline-Burst
  Cache Speed                   1ns
  Error Correction Type         Specification Reserved
  System Cache Type             Unified
  Associativity                 8-way Set-Associative
  Maximum Cache Size 2          180 - 00000384l Kb
  Installed Cache Size 2        180 - 00000384l Kb
[Cache Information (Type 7) - Length 27 - Handle 000fh]
  Socket Designation            L2 - Cache
  Cache Configuration           0181h - WBEnabled Int NonSocketed L2
  Maximum Cache Size            0c00h - 3072K
  Installed Size                0c00h - 3072K
  Supported SRAM Type           0010h - Pipeline-Burst
  Current SRAM Type             0010h - Pipeline-Burst
  Cache Speed                   1ns
  Error Correction Type         Specification Reserved
  System Cache Type             Unified
  Associativity                 8-way Set-Associative
  Maximum Cache Size 2          c00 - 00003072l Kb
  Installed Cache Size 2        c00 - 00003072l Kb
[Cache Information (Type 7) - Length 27 - Handle 0010h]
  Socket Designation            L3 - Cache
  Cache Configuration           0182h - WBEnabled Int NonSocketed L3
  Maximum Cache Size            8200h - 32768K
  Installed Size                8200h - 32768K
  Supported SRAM Type           0010h - Pipeline-Burst
  Current SRAM Type             0010h - Pipeline-Burst
  Cache Speed                   1ns
  Error Correction Type         Specification Reserved
  System Cache Type             Unified
  Associativity                 16-way Set-Associative
  Maximum Cache Size 2          80000200 - 00032768l Kb
  Installed Cache Size 2        80000200 - 00032768l Kb
[Processor Information (Type 4) - Length 48 - Handle 0011h]
  Socket Designation            AM4
  Processor Type                Central Processor
  Processor Family              6bh - AMD Zen Processor Family
  Processor Manufacturer        Advanced Micro Devices, Inc.
  Processor ID                   100f8700fffb8b17
  Processor Version             AMD Ryzen 5 3600X 6-Core Processor
  Processor Voltage             8bh - 1.1V
  External Clock                100MHz
  Max Speed                     4400MHz
  Current Speed                 3800MHz
  Status                        Enabled Populated
  Processor Upgrade             Socket AM4
  L1 Cache Handle               000eh
  L2 Cache Handle               000fh
  L3 Cache Handle               0010h
  Serial Number
  Asset Tag Number
  Part Number                   Unknown
  Core Count                    6
  Core Enabled                  6
  Thread Count                  12
  Processor Characteristics     fc
  Enabled Characteristics:
       0x 2: 64-bit Capable
       0x 3: Multi-Core
       0x 4: Hardware Thread
       0x 5: Execute Protection
       0x 6: Enhanced Virtualization
       0x 7: Power/Performance Control
  Processor Family 2            006bh - AMD Zen Processor Family
  Core Count 2                  6
  Core Enabled 2                6
  Thread Count 2                12
[32Bit Memory Error Information (Type 18) - Length 23 - Handle 0012h]
[Memory Device (Type 17) - Length 92 - Handle 0013h]
  Memory Error Info Handle      0012h
  Total Width                   [Unknown]
  Data Width                    [Unknown]
  Size                          [Not Populated]
  Form Factor                   02h - Unknown
  Device Set                    [None]
  Device Locator                DIMM 0
  Bank Locator                  P0 CHANNEL A
  Memory Type                   02h - Unknown
  Type Detail                   0004h - Unknown
  Speed                         0MHz
  Manufacturer                  Unknown
  Serial Number
  Asset Tag Number              [String Not Specified]
  Part Number                   Unknown
  Attributes                    0
  Extended Size                 0
  Configured Memory Speed       0
  Minimum Voltage               0
  Maximum Voltage               0
  Configured Voltage            0
  Memory Technology             2
  Memory Operating Mode Capability     4
  Firmware Version              6
  Module Manufacturer Id        0
  Module Product Id             0
  Memory Subsystem Controller Manufacturer Id  0
  Memory Subsystem Controller Product Id       0
  Non-Volatile Size             0
  Volatile Size                 0
  Cache Size                    0
  Logical Size                  0
  Extended Speed                0
  Extended Configured Memory Speed     0
[32Bit Memory Error Information (Type 18) - Length 23 - Handle 0014h]
[Memory Device (Type 17) - Length 92 - Handle 0015h]
  Memory Error Info Handle      0014h
  Total Width                   64 bits
  Data Width                    64 bits
  Size                          16384MB
  Form Factor                   09h - DIMM
  Device Set                    [None]
  Device Locator                DIMM 1
  Bank Locator                  P0 CHANNEL A
  Memory Type                   1ah - DDR4
  Type Detail                   4080h - Synchronous Unbuffered (Unregistered)
  Speed                         3600MHz
  Manufacturer                  Kingston
  Serial Number
  Asset Tag Number              [String Not Specified]
  Part Number                   KF3600C18D4/16GX
  Attributes                    1
  Extended Size                 0
  Configured Memory Speed       3600
  Minimum Voltage               1200
  Maximum Voltage               1200
  Configured Voltage            1200
  Memory Technology             3
  Memory Operating Mode Capability     8
  Firmware Version              6
  Module Manufacturer Id        38913
  Module Product Id             0
  Memory Subsystem Controller Manufacturer Id  0
  Memory Subsystem Controller Product Id       0
  Non-Volatile Size             0
  Volatile Size                 0
  Cache Size                    0
  Logical Size                  0
  Extended Speed                0
  Extended Configured Memory Speed     0
[Memory Device Mapped Address (Type 20) - Length 35 - Handle 0016h]
  Starting Address              00000000h
  Ending Address                01ffffffh
  Memory Device Handle          0015h
  Mem Array Mapped Adr Handle   000dh
  Partition Row Position        [Unknown]
  Interleave Position           [Unknown]
  Interleave Data Depth         [Unknown]
  Extended Starting Address     0000000000000000h
  Extended Ending Address       0000000000000000h
[32Bit Memory Error Information (Type 18) - Length 23 - Handle 0017h]
[Memory Device (Type 17) - Length 92 - Handle 0018h]
  Memory Error Info Handle      0017h
  Total Width                   [Unknown]
  Data Width                    [Unknown]
  Size                          [Not Populated]
  Form Factor                   02h - Unknown
  Device Set                    [None]
  Device Locator                DIMM 0
  Bank Locator                  P0 CHANNEL B
  Memory Type                   02h - Unknown
  Type Detail                   0004h - Unknown
  Speed                         0MHz
  Manufacturer                  Unknown
  Serial Number
  Asset Tag Number              [String Not Specified]
  Part Number                   Unknown
  Attributes                    0
  Extended Size                 0
  Configured Memory Speed       0
  Minimum Voltage               0
  Maximum Voltage               0
  Configured Voltage            0
  Memory Technology             2
  Memory Operating Mode Capability     4
  Firmware Version              6
  Module Manufacturer Id        0
  Module Product Id             0
  Memory Subsystem Controller Manufacturer Id  0
  Memory Subsystem Controller Product Id       0
  Non-Volatile Size             0
  Volatile Size                 0
  Cache Size                    0
  Logical Size                  0
  Extended Speed                0
  Extended Configured Memory Speed     0
[32Bit Memory Error Information (Type 18) - Length 23 - Handle 0019h]
[Memory Device (Type 17) - Length 92 - Handle 001ah]
  Memory Error Info Handle      0019h
  Total Width                   64 bits
  Data Width                    64 bits
  Size                          16384MB
  Form Factor                   09h - DIMM
  Device Set                    [None]
  Device Locator                DIMM 1
  Bank Locator                  P0 CHANNEL B
  Memory Type                   1ah - DDR4
  Type Detail                   4080h - Synchronous Unbuffered (Unregistered)
  Speed                         3600MHz
  Manufacturer                  Kingston
  Serial Number
  Asset Tag Number              [String Not Specified]
  Part Number                   KF3600C18D4/16GX
  Attributes                    1
  Extended Size                 0
  Configured Memory Speed       3600
  Minimum Voltage               1200
  Maximum Voltage               1200
  Configured Voltage            1200
  Memory Technology             3
  Memory Operating Mode Capability     8
  Firmware Version              6
  Module Manufacturer Id        38913
  Module Product Id             0
  Memory Subsystem Controller Manufacturer Id  0
  Memory Subsystem Controller Product Id       0
  Non-Volatile Size             0
  Volatile Size                 0
  Cache Size                    0
  Logical Size                  0
  Extended Speed                0
  Extended Configured Memory Speed     0
[Memory Device Mapped Address (Type 20) - Length 35 - Handle 001bh]
  Starting Address              00000000h
  Ending Address                01ffffffh
  Memory Device Handle          001ah
  Mem Array Mapped Adr Handle   000dh
  Partition Row Position        [Unknown]
  Interleave Position           [Unknown]
  Interleave Data Depth         [Unknown]
  Extended Starting Address     0000000000000000h
  Extended Ending Address       0000000000000000h
[ (Type 256) - Length 11 - Handle 0032h]
[ (Type 256) - Length 4 - Handle 0035h]

Bu hataya ben de sık denk gelmiyorum. Yapay zekanın cevabını aşağıda vereceğim ama öncesinde BIOS sürümünüz güncel değil.

F19g sürümüne geçer misiniz?



  1. hatalı sürücü (en yaygın): üçüncü parti bir sürücü (ekran kartı, ağ kartı, depolama denetleyicisi, hatta bir antivirüs yazılımının kernel modu bileşeni vb.) Kernel nesnelerinin referanslarını düzgün yönetemiyor olabilir. Hata çekirdek fonksiyonunda (NT! Obf...) Ortaya çıksa da, asıl tetikleyici genellikle başka bir sürücüdür.
  2. bellek (RAM) sorunları: arızalı RAM modülleri, verilerin bozulmasına ve bu tür tutarsızlıklara yol açabilir.
  3. donanım sorunları (daha az olası): nadiren de olsa, anakart veya depolama birimi ile ilgili sorunlar da dolaylı olarak bu hataya neden olabilir?

Kod:
REFERENCE_BY_POINTER (18)
Arguments:
Arg1: 0000000000000000, Object type of the object whose reference count is being lowered.
Arg2: ffffd108e2a680c0, Object whose reference count is being lowered.
Arg3: 0000000000000002, Reserved.
Arg4: ffffffffffffffff, Reserved.
 The reference count of an object is illegal for the current state of the object.
 Each time a driver uses a pointer to an object the driver calls a kernel routine.
 to increment the reference count of the object. When the driver is done with the.
 pointer the driver calls another kernel routine to decrement the reference count.
 Drivers must match calls to the increment and decrement routines. This BugCheck.
 can occur because an object's reference count goes to zero while there are still.
 open handles to the object, in which case the fourth parameter indicates the number.
 of opened handles. It may also occur when the object's reference count drops below zero.
 whether or not there are open handles to the object, and in that case the fourth parameter.
 contains the actual value of the pointer references count.

Debugging Details:
------------------

KEY_VALUES_STRING: 1

 Key : Analysis.CPU.mSec
 Value: 890.

 Key : Analysis.Elapsed.mSec
 Value: 5910.

 Key : Analysis.IO.Other.Mb
 Value: 0

 Key : Analysis.IO.Read.Mb
 Value: 1

 Key : Analysis.IO.Write.Mb
 Value: 0

 Key : Analysis.Init.CPU.mSec
 Value: 296.

 Key : Analysis.Init.Elapsed.mSec
 Value: 4838.

 Key : Analysis.Memory.CommitPeak.Mb
 Value: 87.

 Key : Analysis.Version.DbgEng
 Value: 10.0.27793.1000

 Key : Analysis.Version.Description
 Value: 10.2410.02.02 amd64fre.

 Key : Analysis.Version.Ext
 Value: 1.2410.2.2

 Key : Bugcheck.Code.LegacyAPI
 Value: 0x18.

 Key : Bugcheck.Code.TargetModel
 Value: 0x18.

 Key : Dump.Attributes.AsUlong
 Value: 0x20008.

 Key : Dump.Attributes.KernelGeneratedTriageDump
 Value: 1

 Key : Failure.Bucket
 Value: 0x18_OVER_DEREFERENCE_nt!ObfDereferenceObjectWithTag

 Key : Failure.Hash
 Value: {4139309c-4e9f-52f0-ac5e-4041e7a86a20}

BUGCHECK_CODE: 18.

BUGCHECK_P1: 0

BUGCHECK_P2: ffffd108e2a680c0.

BUGCHECK_P3: 2

BUGCHECK_P4: ffffffffffffffff.

FILE_IN_CAB: 031025-55078-01.dmp

DUMP_FILE_ATTRIBUTES: 0x20008.
 Kernel Generated Triage Dump.

FAULTING_THREAD: ffffd108d63c7080.

BLACKBOXBSD: 1 (!blackboxbsd)

BLACKBOXNTFS: 1 (!blackboxntfs)

BLACKBOXPNP: 1 (!blackboxpnp)

BLACKBOXWINLOGON: 1

CUSTOMER_CRASH_COUNT: 1

PROCESS_NAME: System.

STACK_TEXT:
fffffc8a`78d69948 fffff802`9b42db66 : 00000000`00000018 00000000`00000000 ffffd108`e2a680c0 00000000`00000002 : nt!KeBugCheckEx
fffffc8a`78d69950 fffff802`9b634fc7 : ffffd108`d9eb7000 00000000`00000000 ffffd108`d9eb7068 00000000`00000000 : nt!ObfDereferenceObjectWithTag+0x66
fffffc8a`78d69990 fffff802`9bb633de : ffffd108`dcf23000 ffffd108`e2a680c0 00000000`00000000 ffffd108`d9eb7020 : nt!MmFreeAccessPfnBuffer+0x27
fffffc8a`78d699c0 fffff802`9bb622d0 : 00000000`00000001 ffffc100`cd928180 00000000`00000001 00000000`00000000 : nt!PfpFlushBuffers+0x35e
fffffc8a`78d69a80 fffff802`9b64fd8a : ffffd108`d63c7080 ffffd108`d63c7080 fffff802`9bb62140 ffffd108`d63c6010 : nt!PfTLoggingWorker+0x190
fffffc8a`78d69bf0 fffff802`9b87a024 : ffffc100`cd928180 ffffd108`d63c7080 fffff802`9b64fd30 00000000`00000246 : nt!PspSystemThreadStartup+0x5a
fffffc8a`78d69c40 00000000`00000000 : fffffc8a`78d6a000 fffffc8a`78d64000 00000000`00000000 00000000`00000000 : nt!KiStartSystemThread+0x34

SYMBOL_NAME: nt!ObfDereferenceObjectWithTag+66

MODULE_NAME: nt.

IMAGE_NAME: ntkrnlmp.exe

IMAGE_VERSION: 10.0.26100.3323

STACK_COMMAND: .process /r /p 0xffffd108c76a4040; .thread 0xffffd108d63c7080 ; kb.

BUCKET_ID_FUNC_OFFSET: 66.

FAILURE_BUCKET_ID: 0x18_OVER_DEREFERENCE_nt!ObfDereferenceObjectWithTag

OSPLATFORM_TYPE: x64.

OSNAME: Windows 10.

FAILURE_ID_HASH: {4139309c-4e9f-52f0-ac5e-4041e7a86a20}

Followup: MachineOwner.
---------

 PnpActivityId : {00000000-0000-0000-0000-000000000000}
 PnpActivityTime : 133858324981635413.
 PnpEventInformation: 3
 PnpEventInProgress : 0
 PnpProblemCode : 24.
 PnpVetoType : 0
 DeviceId : SWD\MSDAS\{ce958e9a-424f-4c88-86f4-11314821e75a}
 VetoString :

[SMBIOS Data Tables v3.3]
[DMI Version - 0]
[2.0 Calling Convention - No]
[Table Size - 2558 bytes]

[BIOS Information (Type 0) - Length 26 - Handle 0000h]
 Vendor American Megatrends International, LLC.
 BIOS Version F18.
 BIOS Starting Address Segment f000.
 BIOS Release Date 03/22/2024
 BIOS ROM Size 1000000.
 BIOS Characteristics.
 07: - PCI Supported.
 11: - Upgradeable FLASH BIOS.
 12: - BIOS Shadowing Supported.
 15: - CD-Boot Supported.
 16: - Selectable Boot Supported.
 17: - BIOS ROM Socketed.
 19: - EDD Supported.
 20: - NEC 9800 J-Floppy Supported.
 21: - Toshiba J-Floppy Supported.
 22: - 360KB Floppy Supported.
 23: - 1.2MB Floppy Supported.
 24: - 720KB Floppy Supported.
 25: - 2.88MB Floppy Supported.
 26: - Print Screen Device Supported.
 28: - Serial Services Supported.
 29: - Printer Services Supported.
 30: - CGA/Mono Services Supported.
 32: - BIOS Vendor Reserved.
 BIOS Characteristic Extensions.
 01: - USB Legacy Supported.
 08: - BIOS Boot Specification Supported.
 10: - Enable Targeted Content Distribution.
 11: - UEFI Specification Supported.
 BIOS Major Revision 5
 BIOS Minor Revision 17.
 EC Firmware Major Revision 255.
 EC Firmware Minor Revision 255.
 Extended BIOS ROM Size 16 MB.
[System Information (Type 1) - Length 27 - Handle 0001h]
 Manufacturer Gigabyte Technology Co., Ltd.
 Product Name A520M S2H.
 Version -CF
 Serial Number Default string.
 UUID 00000000-0000-0000-0000-000000000000
 Wakeup Type Power Switch.
 SKUNumber Default string.
 Family A520 MB.
[BaseBoard Information (Type 2) - Length 15 - Handle 0002h]
 Manufacturer Gigabyte Technology Co., Ltd.
 Product A520M S2H.
 Version x.x
 Serial Number Default string.
 Asset Tag
 Feature Flags 09h.
 00: - Motherboard.
 03: - Replaceable.
 Location Default string.
 Chassis Handle 0003h.
 Board Type 0ah - Processor/Memory Module.
 Number of Child Handles 0
[System Enclosure (Type 3) - Length 22 - Handle 0003h]
 Manufacturer Default string.
 Chassis Type Desktop.
 Version Default string.
 Serial Number
 Asset Tag Number
 Bootup State Safe.
 Power Supply State Safe.
 Thermal State Safe.
 Security Status None.
 OEM Defined 0
 Height 0U.
 Number of Power Cords 1
 Number of Contained Elements 0
 Contained Element Size 3
[Onboard Devices Information (Type 10) - Length 6 - Handle 0004h]
Note: The On Board Device Information (Type 10) struct is obsolete as of SMBIOs spec v2.6 Number of Devices 1
 01: Type Video [enabled]
 01: Description To Be Filled By O.E.M.
[OEM Strings (Type 11) - Length 5 - Handle 0005h]
 Number of Strings 1
 1 Default string.
[System Configuration Options (Type 12) - Length 5 - Handle 0006h]
[ (Type 256) - Length 9 - Handle 0008h]
[ (Type 256) - Length 31 - Handle 0009h]
[32Bit Memory Error Information (Type 18) - Length 23 - Handle 000ah]
[Physical Memory Array (Type 16) - Length 23 - Handle 000bh]
 Location 03h - SystemBoard/Motherboard
 Use 03h - System Memory.
 Memory Error Correction 03h - None.
 Maximum Capacity 134217728KB.
 Memory Error Inf Handle 000ah.
 Number of Memory Devices 4
[Memory Array Mapped Address (Type 19) - Length 31 - Handle 000ch]
 Starting Address 00000000h.
 Ending Address 002fffffh.
 Memory Array Handle 000bh.
 Partition Width 02.
 Extended Starting Address 0000000000000000h.
 Extended Ending Address 0000000000000000h.
[Memory Array Mapped Address (Type 19) - Length 31 - Handle 000dh]
 Starting Address 00400000h.
 Ending Address 020fffffh.
 Memory Array Handle 000bh.
 Partition Width 02.
 Extended Starting Address 0000000000000000h.
 Extended Ending Address 0000000000000000h.
[Cache Information (Type 7) - Length 27 - Handle 000eh]
 Socket Designation L1 - Cache.
 Cache Configuration 0180h - WBEnabled Int NonSocketed L1.
 Maximum Cache Size 0180h - 384K.
 Installed Size 0180h - 384K.
 Supported SRAM Type 0010h - Pipeline-Burst
 Current SRAM Type 0010h - Pipeline-Burst
 Cache Speed 1ns.
 Error Correction Type Specification Reserved.
 System Cache Type Unified.
 Associativity 8-way Set-Associative
 Maximum Cache Size 2 180 - 00000384l Kb.
 Installed Cache Size 2 180 - 00000384l Kb.
[Cache Information (Type 7) - Length 27 - Handle 000fh]
 Socket Designation L2 - Cache.
 Cache Configuration 0181h - WBEnabled Int NonSocketed L2.
 Maximum Cache Size 0c00h - 3072K.
 Installed Size 0c00h - 3072K.
 Supported SRAM Type 0010h - Pipeline-Burst
 Current SRAM Type 0010h - Pipeline-Burst
 Cache Speed 1ns.
 Error Correction Type Specification Reserved.
 System Cache Type Unified.
 Associativity 8-way Set-Associative
 Maximum Cache Size 2 c00 - 00003072l Kb.
 Installed Cache Size 2 c00 - 00003072l Kb.
[Cache Information (Type 7) - Length 27 - Handle 0010h]
 Socket Designation L3 - Cache.
 Cache Configuration 0182h - WBEnabled Int NonSocketed L3.
 Maximum Cache Size 8200h - 32768K.
 Installed Size 8200h - 32768K.
 Supported SRAM Type 0010h - Pipeline-Burst
 Current SRAM Type 0010h - Pipeline-Burst
 Cache Speed 1ns.
 Error Correction Type Specification Reserved.
 System Cache Type Unified.
 Associativity 16-way Set-Associative
 Maximum Cache Size 2 80000200 - 00032768l Kb.
 Installed Cache Size 2 80000200 - 00032768l Kb.
[Processor Information (Type 4) - Length 48 - Handle 0011h]
 Socket Designation AM4.
 Processor Type Central Processor.
 Processor Family 6bh - AMD Zen Processor Family.
 Processor Manufacturer Advanced Micro Devices, Inc.
 Processor ID 100f8700fffb8b17.
 Processor Version AMD Ryzen 5 3600X 6-Core Processor
 Processor Voltage 8bh - 1.1V
 External Clock 100MHz.
 Max Speed 4400MHz.
 Current Speed 3800MHz.
 Status Enabled Populated.
 Processor Upgrade Socket AM4.
 L1 Cache Handle 000eh.
 L2 Cache Handle 000fh.
 L3 Cache Handle 0010h.
 Serial Number
 Asset Tag Number
 Part Number Unknown.
 Core Count 6
 Core Enabled 6
 Thread Count 12.
 Processor Characteristics fc.
 Enabled Characteristics:
 0x 2: 64-bit Capable.
 0x 3: Multi-Core
 0x 4: Hardware Thread.
 0x 5: Execute Protection.
 0x 6: Enhanced Virtualization.
 0x 7: Power/Performance Control.
 Processor Family 2 006bh - AMD Zen Processor Family.
 Core Count 2 6
 Core Enabled 2 6
 Thread Count 2 12.
[32Bit Memory Error Information (Type 18) - Length 23 - Handle 0012h]
[Memory Device (Type 17) - Length 92 - Handle 0013h]
 Memory Error Info Handle 0012h.
 Total Width [Unknown]
 Data Width [Unknown]
 Size [Not Populated]
 Form Factor 02h - Unknown.
 Device Set [None]
 Device Locator DIMM 0
 Bank Locator P0 CHANNEL A
 Memory Type 02h - Unknown.
 Type Detail 0004h - Unknown.
 Speed 0MHz.
 Manufacturer Unknown.
 Serial Number
 Asset Tag Number [String Not Specified]
 Part Number Unknown.
 Attributes 0
 Extended Size 0
 Configured Memory Speed 0
 Minimum Voltage 0
 Maximum Voltage 0
 Configured Voltage 0
 Memory Technology 2
 Memory Operating Mode Capability 4
 Firmware Version 6
 Module Manufacturer Id 0
 Module Product Id 0
 Memory Subsystem Controller Manufacturer Id 0
 Memory Subsystem Controller Product Id 0
 Non-Volatile Size 0
 Volatile Size 0
 Cache Size 0
 Logical Size 0
 Extended Speed 0
 Extended Configured Memory Speed 0
[32Bit Memory Error Information (Type 18) - Length 23 - Handle 0014h]
[Memory Device (Type 17) - Length 92 - Handle 0015h]
 Memory Error Info Handle 0014h.
 Total Width 64 bits.
 Data Width 64 bits.
 Size 16384MB.
 Form Factor 09h - DIMM.
 Device Set [None]
 Device Locator DIMM 1
 Bank Locator P0 CHANNEL A
 Memory Type 1ah - DDR4.
 Type Detail 4080h - Synchronous Unbuffered (Unregistered)
 Speed 3600MHz.
 Manufacturer Kingston.
 Serial Number
 Asset Tag Number [String Not Specified]
 Part Number KF3600C18D4/16GX
 Attributes 1
 Extended Size 0
 Configured Memory Speed 3600.
 Minimum Voltage 1200.
 Maximum Voltage 1200.
 Configured Voltage 1200.
 Memory Technology 3
 Memory Operating Mode Capability 8
 Firmware Version 6
 Module Manufacturer Id 38913.
 Module Product Id 0
 Memory Subsystem Controller Manufacturer Id 0
 Memory Subsystem Controller Product Id 0
 Non-Volatile Size 0
 Volatile Size 0
 Cache Size 0
 Logical Size 0
 Extended Speed 0
 Extended Configured Memory Speed 0
[Memory Device Mapped Address (Type 20) - Length 35 - Handle 0016h]
 Starting Address 00000000h.
 Ending Address 01ffffffh.
 Memory Device Handle 0015h.
 Mem Array Mapped Adr Handle 000dh.
 Partition Row Position [Unknown]
 Interleave Position [Unknown]
 Interleave Data Depth [Unknown]
 Extended Starting Address 0000000000000000h.
 Extended Ending Address 0000000000000000h.
[32Bit Memory Error Information (Type 18) - Length 23 - Handle 0017h]
[Memory Device (Type 17) - Length 92 - Handle 0018h]
 Memory Error Info Handle 0017h.
 Total Width [Unknown]
 Data Width [Unknown]
 Size [Not Populated]
 Form Factor 02h - Unknown.
 Device Set [None]
 Device Locator DIMM 0
 Bank Locator P0 CHANNEL B
 Memory Type 02h - Unknown.
 Type Detail 0004h - Unknown.
 Speed 0MHz.
 Manufacturer Unknown.
 Serial Number
 Asset Tag Number [String Not Specified]
 Part Number Unknown.
 Attributes 0
 Extended Size 0
 Configured Memory Speed 0
 Minimum Voltage 0
 Maximum Voltage 0
 Configured Voltage 0
 Memory Technology 2
 Memory Operating Mode Capability 4
 Firmware Version 6
 Module Manufacturer Id 0
 Module Product Id 0
 Memory Subsystem Controller Manufacturer Id 0
 Memory Subsystem Controller Product Id 0
 Non-Volatile Size 0
 Volatile Size 0
 Cache Size 0
 Logical Size 0
 Extended Speed 0
 Extended Configured Memory Speed 0
[32Bit Memory Error Information (Type 18) - Length 23 - Handle 0019h]
[Memory Device (Type 17) - Length 92 - Handle 001ah]
 Memory Error Info Handle 0019h.
 Total Width 64 bits.
 Data Width 64 bits.
 Size 16384MB.
 Form Factor 09h - DIMM.
 Device Set [None]
 Device Locator DIMM 1
 Bank Locator P0 CHANNEL B
 Memory Type 1ah - DDR4.
 Type Detail 4080h - Synchronous Unbuffered (Unregistered)
 Speed 3600MHz.
 Manufacturer Kingston.
 Serial Number
 Asset Tag Number [String Not Specified]
 Part Number KF3600C18D4/16GX
 Attributes 1
 Extended Size 0
 Configured Memory Speed 3600.
 Minimum Voltage 1200.
 Maximum Voltage 1200.
 Configured Voltage 1200.
 Memory Technology 3
 Memory Operating Mode Capability 8
 Firmware Version 6
 Module Manufacturer Id 38913.
 Module Product Id 0
 Memory Subsystem Controller Manufacturer Id 0
 Memory Subsystem Controller Product Id 0
 Non-Volatile Size 0
 Volatile Size 0
 Cache Size 0
 Logical Size 0
 Extended Speed 0
 Extended Configured Memory Speed 0
[Memory Device Mapped Address (Type 20) - Length 35 - Handle 001bh]
 Starting Address 00000000h.
 Ending Address 01ffffffh.
 Memory Device Handle 001ah.
 Mem Array Mapped Adr Handle 000dh.
 Partition Row Position [Unknown]
 Interleave Position [Unknown]
 Interleave Data Depth [Unknown]
 Extended Starting Address 0000000000000000h.
 Extended Ending Address 0000000000000000h.
[ (Type 256) - Length 11 - Handle 0032h]
[ (Type 256) - Length 4 - Handle 0035h]


2 gün önce BIOS güncellemesi yaptım hocam.

STACK_TEXT:
fffffc8a`78d69948 fffff802`9b42db66 : 00000000`00000018 00000000`00000000 ffffd108`e2a680c0 00000000`00000002 : nt!KeBugCheckEx
fffffc8a`78d69950 fffff802`9b634fc7 : ffffd108`d9eb7000 00000000`00000000 ffffd108`d9eb7068 00000000`00000000 : nt!ObfDereferenceObjectWithTag+0x66
fffffc8a`78d69990 fffff802`9bb633de : ffffd108`dcf23000 ffffd108`e2a680c0 00000000`00000000 ffffd108`d9eb7020 : nt!MmFreeAccessPfnBuffer+0x27
fffffc8a`78d699c0 fffff802`9bb622d0 : 00000000`00000001 ffffc100`cd928180 00000000`00000001 00000000`00000000 : nt!PfpFlushBuffers+0x35e
fffffc8a`78d69a80 fffff802`9b64fd8a : ffffd108`d63c7080 ffffd108`d63c7080 fffff802`9bb62140 ffffd108`d63c6010 : nt!PfTLoggingWorker+0x190
fffffc8a`78d69bf0 fffff802`9b87a024 : ffffc100`cd928180 ffffd108`d63c7080 fffff802`9b64fd30 00000000`00000246 : nt!PspSystemThreadStartup+0x5a
fffffc8a`78d69c40 00000000`00000000 : fffffc8a`78d6a000 fffffc8a`78d64000 00000000`00000000 00000000`00000000 : nt!KiStartSystemThread+0x34
Hocam Stack Text'ten anladığıma göre, disk ya da RAM kaynaklı bir sorun var sanki. %0 da takılı kalması da bu ihtimalleri kuvvetlendirir gibi.
Memtest86 önersek nasıl olur? Bir de SMART verilerini isteyelim.
@Anonymous_1
CrystalDiskInfo yükle, İşlev-Gelişmiş Özellik-Ham Değer DEC 10 olarak ayarla ve tüm disklerinin verilerini EKSİKSİZ paylaş.

Bir de Memtest86. DOCP açık olsun.

Hocam stack Text'ten anladığıma göre, disk ya da RAM kaynaklı bir sorun var sanki. %0 da takılı kalması da bu ihtimalleri kuvvetlendirir gibi.
Memtest86 önersek nasıl olur? Bir de Smart verilerini isteyelim.
@Anonymous_1
CrystalDiskInfo yükle, işlev-gelişmiş özellik-ham değer dec 10 olarak ayarla ve tüm disklerinin verilerini eksiksiz paylaş.

Bir de Memtest86. DOCP açık olsun.






Buyurun hocam memtes testi de yapıp paylaşacağım.
Tekrar mavi ekran aldım bu sefer hata kodu CRITICAL_PROCESS_DIED.

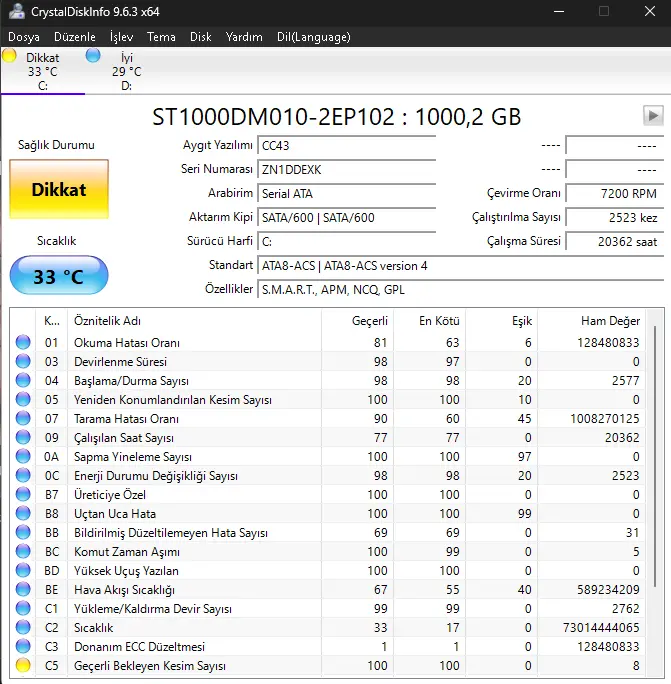

Eki Görüntüle 136500

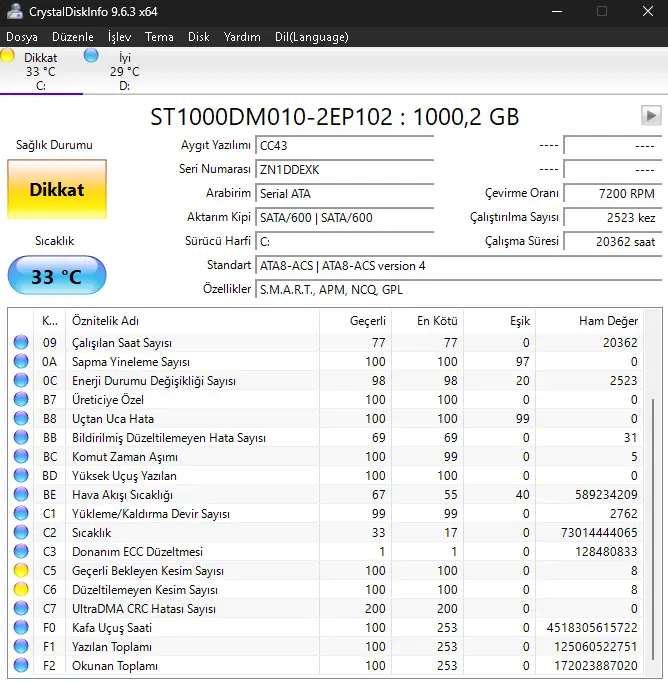

Eki Görüntüle 136501

Buyurun hocam memtes testi de yapıp paylaşacağım.
Tekrar mavi ekran aldım bu sefer hata kodu CRITICAL_PROCESS_DIED.

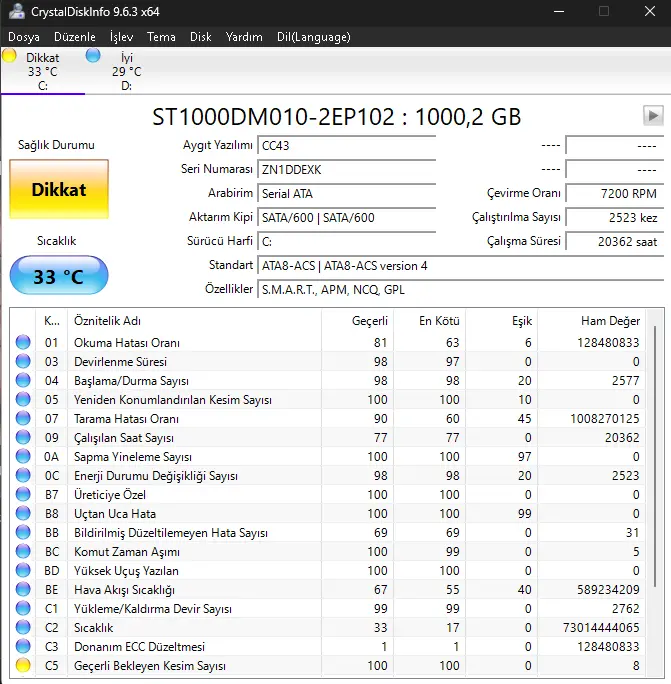

Seagate diskinde 8 tane bozuk sektör oluşmuş ve düzeltilememiş. Eğer o bozuk sektörlerde veri varsa, hataya sebebiyet verebilir.

Sonuç olarak bu durumda da suçluyu bulduk gibi görünüyor.

Ayrıca CRITICAL_PROCESS_DIED 0xEF hatası, Windows'un bazı kritik uygulamalarının herhangi bir şekilde sonlandırıldığında ortaya çıkan bir hatadır. Görev Yöneticisi'nden Ayrıntılar kısmına girip inceleyebilirsin.
csrss.exe, wininit.exe, logonui.exe, smss.exe, services.exe, conhost.exe, winlogon.exe.

Bunlardan herhangi birisinin etkinliği sonlandırıldığında 0xEF hatası meydana gelir.

Zaten Seagate'lerin kronik sorunu sanırım, bugüne kadar hangi Seagate diskini gördüysem hep okuma hatası, tarama hatası, kafa uçuşu böyle absürt değerler gösteriyor. Çok kaliteli olduklarını da sanmıyorum da neyse o başka konu.

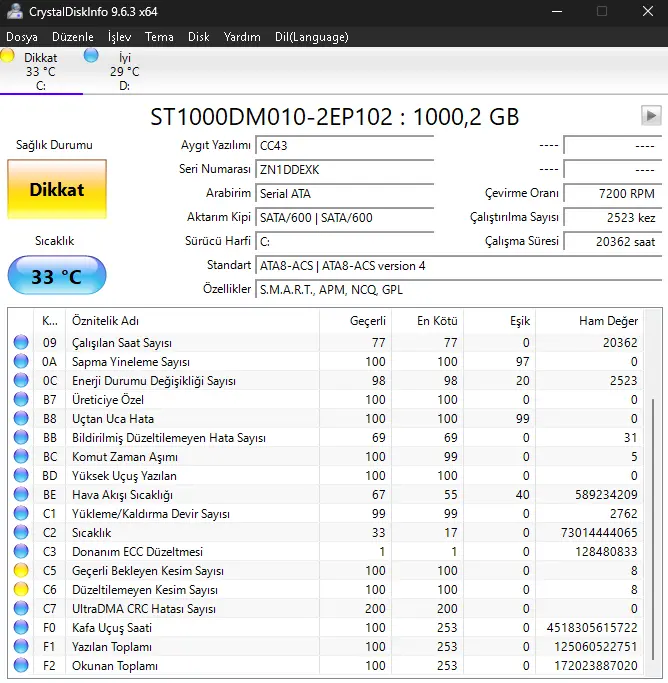

Bildirilmiş Düzeltilemeyen Hata Sayısı da 31 miş. Sen bu Seagate'den kurtul, muhtemelen sorun çözülecek.

D Diskinde ne var? Onu paylaşmamışsın.

HDD Regenerator yazılımı ile bir o kadar disk kurtarabilmişken, bir o kadar da kurtaramadım. Denenir, kurtulsa bile güven verir mi orası meçhul. Özetle disk gitmiş.

Seagate diskinde 8 tane bozuk sektör oluşmuş ve düzeltilememiş. Eğer o bozuk sektörlerde veri varsa, hataya sebebiyet verebilir.

Sonuç olarak bu durumda da suçluyu bulduk gibi görünüyor.

Ayrıca CRITICAL_PROCESS_DIED 0xEF hatası, Windows'un bazı kritik uygulamalarının herhangi bir şekilde sonlandırıldığında ortaya çıkan bir hatadır. Görev Yöneticisi'nden ayrıntılar kısmına girip inceleyebilirsin.
csrss.exe, wininit.exe, logonui.exe, smss.exe, services.exe, conhost.exe, winlogon.exe.

Bunlardan herhangi birisinin etkinliği sonlandırıldığında 0xEF hatası meydana gelir.

Zaten Seagate'lerin kronik sorunu sanırım, bugüne kadar hangi Seagate diskini gördüysem hep okuma hatası, tarama hatası, kafa uçuşu böyle absürt değerler gösteriyor. Çok kaliteli olduklarını da sanmıyorum da neyse o başka konu.

Bildirilmiş düzeltilemeyen hata sayısı da 31 miş. Sen bu Seagate'den kurtul, muhtemelen sorun çözülecek.

D diskinde ne var? Onu paylaşmamışsın.

HDD Regenerator yazılımı ile bir o kadar disk kurtarabilmişken, bir o kadar da kurtaramadım. Denenir, kurtulsa bile güven verir mi orası meçhul. Özetle disk gitmiş.

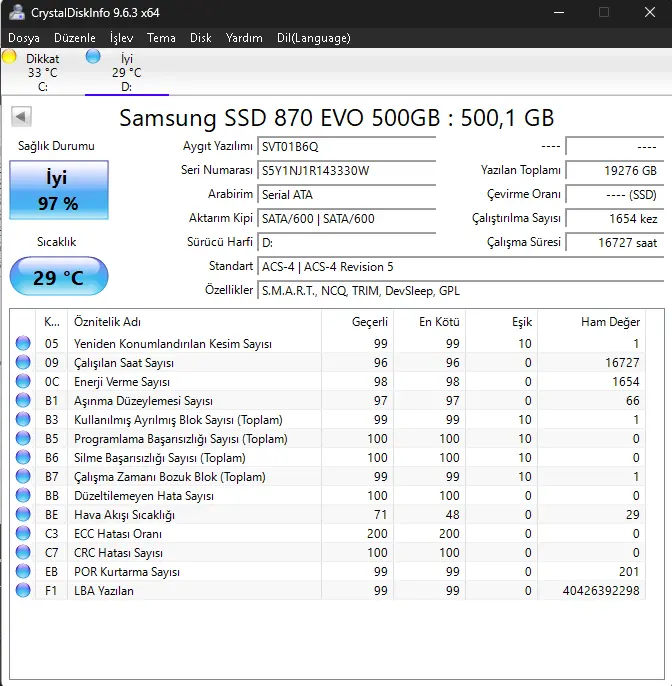

Sistemi yenilemeden önce de aynı mavi ekran hatasını almıştım HDD değişmedim çünkü buyurun hocam D bölümü, M.2 SSD'ye geçmeyi düşünüyorum dediğiniz gibi. Sistemi de ona kurarım HDD Tune ile scan yaptım 1 tane hasarlı bölüm çıktı.


Sistemi yenilemeden önce de aynı mavi ekran hatasını almıştım HDD değişmedim çünkü buyurun hocam D bölümü, M.2 SSD'ye geçmeyi düşünüyorum dediğiniz gibi. Sistemi de ona kurarım HDD Tune ile scan yaptım 1 tane hasarlı bölüm çıktı.

Eki Görüntüle 136591

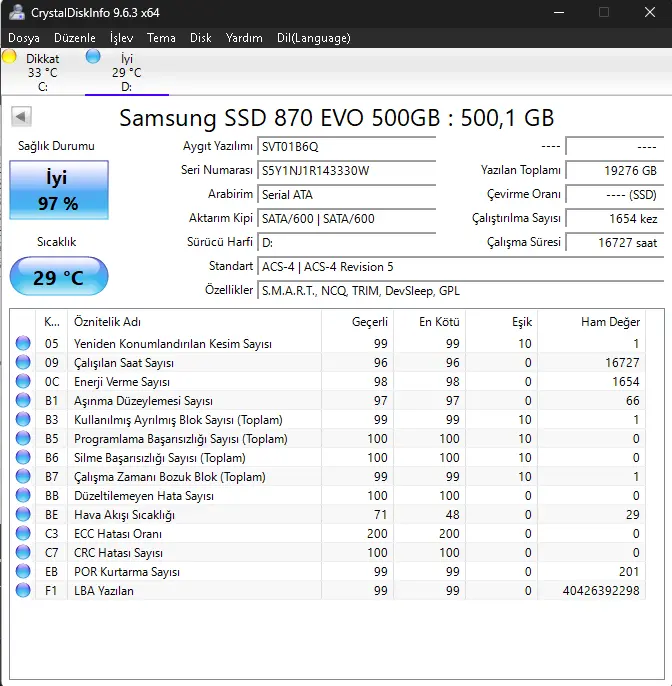

Bunun da durumu çok parlak değil ama, Seagate'i çıkarıp Samsung SSD'ye Windows kurarsan, muhtemelen sorun kökten çözülecek gibi duruyor.
