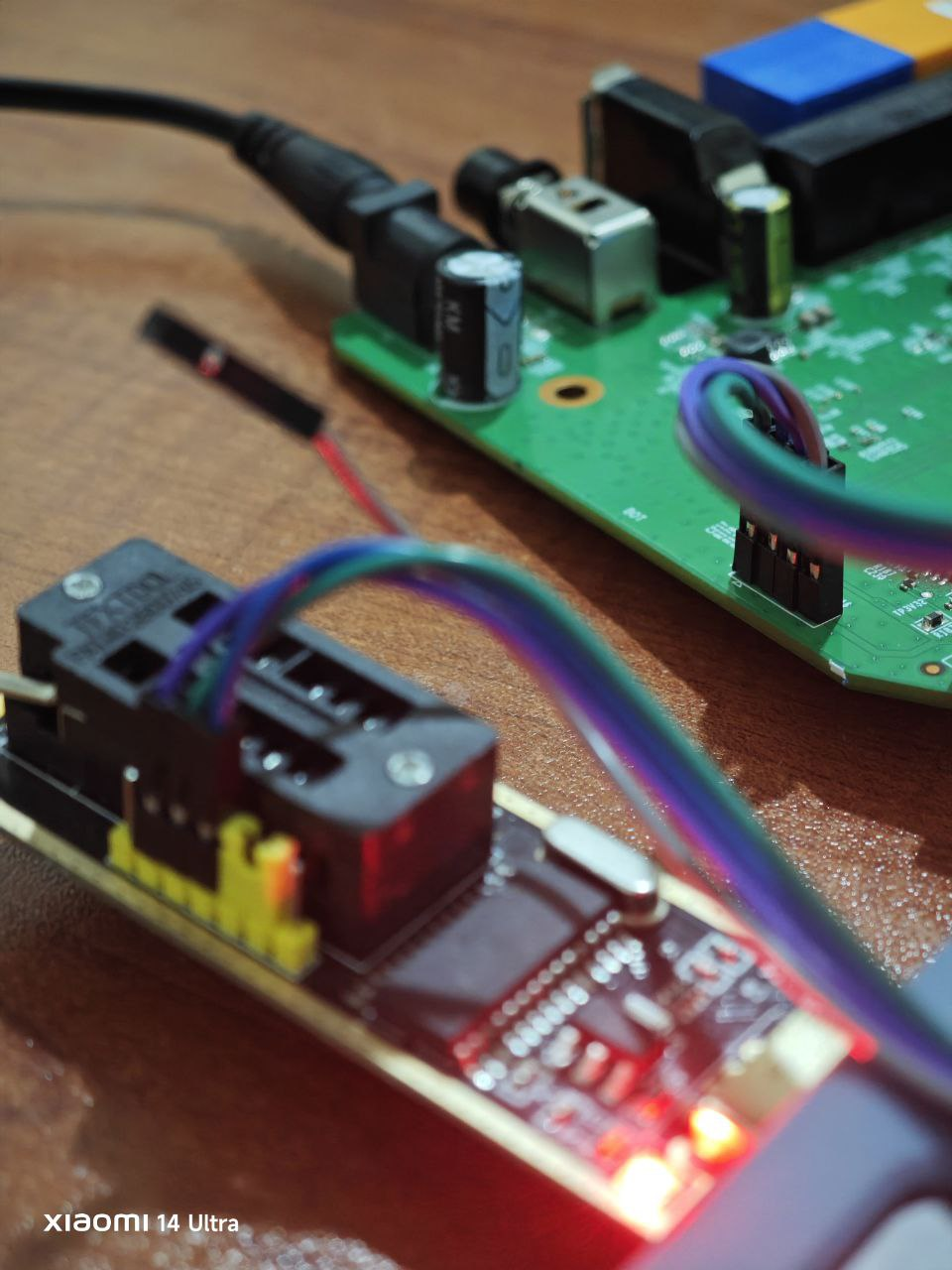

CH341A ile TTL bağlantı sağlıyorum fakat komut giremiyorum.
Sanırım routerın RX pini devre dışı.
Bootlogu paylaşıyorum.
Sanırım routerın RX pini devre dışı.
Bootlogu paylaşıyorum.
Kod:
EN7523DRAMC V0.2
dram_type = 5, speed = 1866
Final Impdance Cal Result: OCDP:0x1b, OCDN:0x1e, ODTP:0xa, ODTN:0xa
DDR1866 PLL setting init
[Dramc] PCDDR3 AC Timing update
Fire MRW command...
ModeReg.2, value.0x20 done
Fire MRW command...
ModeReg.3, value.0x0 done
Fire MRW command...
ModeReg.1, value.0x6 done
Fire MRW command...
ModeReg.0, value.0x1114 done
Fire MRW command...
ModeReg.1, value.0x86 done
Fire MRW command...
ModeReg.1, value.0x6 done
Calculate size.
DRAM size=512MB
U-Boot 2014.04-rc1 (Apr 15 2025 - 11:06:22)
DRAM: 496 MiB
EN7562CT
Now running in RAM - U-Boot at: 9ee05000
spi_nand_probe: mfr_id=0x2c, dev_id=0x34
Using Flash ECC.
Detected SPI NAND Flash : _SPI_NAND_DEVICE_ID_F50L4G41XB, Flash Size=0x20000000
bmt pool size: 163
BMT & BBT Init Success
In: serial
Out: serial
Err: serial
CPU0: found redistributor 0 region 0:9ee3db08
Net: ecnt_eth
Uip activated
Not found TC Phy
Not found TC Phy
Not found TC Phy
Not found TC Phy
Hit any key to stop autoboot: 0
Prepare to boot image1
bootm flag=0, states=70f
## Loading kernel from FIT Image at 81800200 ...
Using 'conf@1' configuration
Trying 'kernel@1' kernel subimage
Description: ECONET Linux kernel
Type: Kernel Image
Compression: lzma compressed
Data Start: 0x818022a4
Data Size: 2820125 Bytes = 2.7 MiB
Architecture: ARM
OS: Linux
Load Address: 0x80088000
Entry Point: 0x80088000
Hash algo: sha1
Hash value: 9369951889aaa9498063d34ed58fc45648658749
## Loading fdt from FIT Image at 81800200 ...
Using 'conf@1' configuration
Trying 'fdt@1' fdt subimage
Description: ECONET Flattened Device Tree blob
Type: Flat Device Tree
Compression: uncompressed
Data Start: 0x818002fc
Data Size: 7913 Bytes = 7.7 KiB
Architecture: ARM
Hash algo: sha1
Hash value: 73fbebcf3dfc0e0007752bdeff8c7c0f35611f24
Booting using the fdt blob at 0x818002fc
Uncompressing Kernel Image ... OK
Loading Device Tree to 9cdf8000, end 9cdfcee8 ... OK
Starting kernel ...
Booting Linux on physical CPU 0x0
Initializing cgroup subsys cpuset
Initializing cgroup subsys cpu
Initializing cgroup subsys cpuacct
Linux version 4.4.115 (compile@3afbd4ef4a54) (gcc version 4.9.3 (Buildroot 2015.08.1-gd814875) ) #1 SMP Tue Apr 15 11:09:13 UTC 2025
CPU: ARMv7 Processor [410fd034] revision 4 (ARMv7), cr=10c5383d
CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
Machine model: econet,en7523
bootconsole [uart0] enabled
Memory policy: Data cache writealloc
psci: probing for conduit method from DT.
psci: PSCIv1.1 detected in firmware.
psci: Using standard PSCI v0.2 function IDs
psci: MIGRATE_INFO_TYPE not supported.
[c05822b8]npu_pkt_buf_addr=9dcf1fc0:9dcf1fc0
npu_pkt_buffer memblock_alloc:9dcf1fc0,buf_size=1600000
PERCPU: Embedded 12 pages/cpu @ddcd7000 s18112 r8192 d22848 u49152
Built 1 zonelists in Zone order, mobility grouping on. Total pages: 129472
Kernel command line: sdram_conf=0x00108893 vendor_name=ECONET Technologies Corp. product_name=xPON ONU ethaddr=20:23:51:22:B9:91 snmp_sysobjid=1.2.3.4.5 country_code=ff ether_gpio=0c power_gpio=1515 username=telecomadmin password=nE7jA%5m dsl_gpio=0b internet_gpio=02 multi_upgrade_gpio=0b020400000000000000000000000000 onu_type=2 qdma_init=33 root=/dev/mtdblock8 ro console=ttyS0,115200n8 earlycon bootflag=0 serdes_sel=0
PID hash table entries: 2048 (order: 1, 8192 bytes)
Dentry cache hash table entries: 65536 (order: 6, 262144 bytes)
Inode-cache hash table entries: 32768 (order: 5, 131072 bytes)
Memory: 478328K/523008K available (5245K kernel code, 178K rwdata, 1648K rodata, 256K init, 920K bss, 44680K reserved, 0K cma-reserved, 0K highmem)
Virtual kernel memory layout:
vector : 0xffff0000 - 0xffff1000 ( 4 kB)
fixmap : 0xffc00000 - 0xfff00000 (3072 kB)
vmalloc : 0xe0800000 - 0xff800000 ( 496 MB)
lowmem : 0xc0000000 - 0xe0000000 ( 512 MB)
pkmap : 0xbfe00000 - 0xc0000000 ( 2 MB)
modules : 0xbe800000 - 0xbfe00000 ( 22 MB)
.text : 0xc0088000 - 0xc0743908 (6895 kB)
.init : 0xc0744000 - 0xc0784000 ( 256 kB)
.data : 0xc0784000 - 0xc07b0a80 ( 179 kB)
.bss : 0xc07b3000 - 0xc08992e8 ( 921 kB)
Hierarchical RCU implementation.
Build-time adjustment of leaf fanout to 32.
NR_IRQS:64 nr_irqs:64 64
CPU0: found redistributor 0 region 0:0x09080000
Architected cp15 timer(s) running at 25.00MHz (virt).
clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x5c40939b5, max_idle_ns: 440795202646 ns
sched_clock: 56 bits at 25MHz, resolution 40ns, wraps every 4398046511100ns
Switching to timer-based delay loop, resolution 40ns
console [ttyS0] enabled
bootconsole [uart0] disabled
ECNT ring buffer init success
[C0]core freq at 333000000 Hz
[C0]timer_init: Timer clk is running at 125 Mhz
[C0]wcid_counter_init:0
[C0]wcid_counter_init:1
[C0][NPU] ba_node_init...
[C0]baNode_array_init
[C0]counter_init:2
[C0][NPU] queue_mutex_init...
[C0]qdma_init
[C1]core1_main
[C2]timer_isr Store Value 1e903000, val[C2]core2_main
[C3]core3_main
[C3]do npu_enq_deq_init
[C0]wifi_mail_data->wifi_mail_private.npuPktBufAddr=9dcf1fc0, 9dcf1fc0
[C0](core0_main) just return, because QDMA driver for ARM is not ready
[C0][NPU] npu_set_pcie_base, addr=200d4540, band_idx=0
[C0][npu_set_pcie_base] 2.4G pcieBase 200d4540 mem_base 200d4540, hw_rx_desc=0
[C0][NPU] npu_set_pcie_base, addr=202d8550, band_idx=1
[C0][npu_set_pcie_base] 5G pcieBase 202d8550 mem_base 202d8550, hw_rx_desc=0
[C0][NPU] npu_init...
[C0]=======================
[C0]NPU Version: MT7916_NPU_V1.002._20240902
[C0]=======================
[C0]Support NPU Wifi ffload
[C0][NPU] pkt_queue_init...
[C0]counter_init:1
[C0][NPU] Enter npu_npu_init_rxd_5G, band_idx=1, rx_ring_size=1536
[C0][NPU] npu_init...
[C0]=======================
[C0]NPU Version: MT7916_NPU_V1.002._20240902
[C0]=======================
[C0]Support NPU Wifi ffload
[C0][NPU] pkt_queue_init...
[C0]counter_init:0
[C0][NPU] Enter(2.4G) npu_npu_init_rxd, band_idx=0, rx_ring_size=1536
