v0.393a
OS: 10.0 build 19045
Drive : 0(NVME)
Driver : W10(0:3)
Model : PNY CS3030 500GB SSD
Fw : CS303321
Size : 476940 MB [500.1 GB]
LBA Size: 512
CEL not supported
Read_System_Info_5008 error: -1
Firmware lock supported [02 01] [P004] [0100]
Drive unlocked [02 03]
F/W : ECFM32.1 00
P/N : 511-210303100
Bank00: 0x9b,0xc3,0x48,0x25,0x10,0x0,0x0,0x0 - YMTC 3dv2-64L(x1-9050) TLC 16k 256Gb/CE 256Gb/die 2Plane/die
Bank01: 0x9b,0xc3,0x48,0x25,0x10,0x0,0x0,0x0 - YMTC 3dv2-64L(x1-9050) TLC 16k 256Gb/CE 256Gb/die 2Plane/die
Bank02: 0x9b,0xc3,0x48,0x25,0x10,0x0,0x0,0x0 - YMTC 3dv2-64L(x1-9050) TLC 16k 256Gb/CE 256Gb/die 2Plane/die
Bank03: 0x9b,0xc3,0x48,0x25,0x10,0x0,0x0,0x0 - YMTC 3dv2-64L(x1-9050) TLC 16k 256Gb/CE 256Gb/die 2Plane/die
Bank04: 0x9b,0xc3,0x48,0x25,0x10,0x0,0x0,0x0 - YMTC 3dv2-64L(x1-9050) TLC 16k 256Gb/CE 256Gb/die 2Plane/die
Bank05: 0x9b,0xc3,0x48,0x25,0x10,0x0,0x0,0x0 - YMTC 3dv2-64L(x1-9050) TLC 16k 256Gb/CE 256Gb/die 2Plane/die
Bank06: 0x9b,0xc3,0x48,0x25,0x10,0x0,0x0,0x0 - YMTC 3dv2-64L(x1-9050) TLC 16k 256Gb/CE 256Gb/die 2Plane/die
Bank07: 0x9b,0xc3,0x48,0x25,0x10,0x0,0x0,0x0 - YMTC 3dv2-64L(x1-9050) TLC 16k 256Gb/CE 256Gb/die 2Plane/die
Bank08: 0x9b,0xc3,0x48,0x25,0x10,0x0,0x0,0x0 - YMTC 3dv2-64L(x1-9050) TLC 16k 256Gb/CE 256Gb/die 2Plane/die
Bank09: 0x9b,0xc3,0x48,0x25,0x10,0x0,0x0,0x0 - YMTC 3dv2-64L(x1-9050) TLC 16k 256Gb/CE 256Gb/die 2Plane/die
Bank10: 0x9b,0xc3,0x48,0x25,0x10,0x0,0x0,0x0 - YMTC 3dv2-64L(x1-9050) TLC 16k 256Gb/CE 256Gb/die 2Plane/die
Bank11: 0x9b,0xc3,0x48,0x25,0x10,0x0,0x0,0x0 - YMTC 3dv2-64L(x1-9050) TLC 16k 256Gb/CE 256Gb/die 2Plane/die
Bank12: 0x9b,0xc3,0x48,0x25,0x10,0x0,0x0,0x0 - YMTC 3dv2-64L(x1-9050) TLC 16k 256Gb/CE 256Gb/die 2Plane/die
Bank13: 0x9b,0xc3,0x48,0x25,0x10,0x0,0x0,0x0 - YMTC 3dv2-64L(x1-9050) TLC 16k 256Gb/CE 256Gb/die 2Plane/die
Bank14: 0x9b,0xc3,0x48,0x25,0x10,0x0,0x0,0x0 - YMTC 3dv2-64L(x1-9050) TLC 16k 256Gb/CE 256Gb/die 2Plane/die
Bank15: 0x9b,0xc3,0x48,0x25,0x10,0x0,0x0,0x0 - YMTC 3dv2-64L(x1-9050) TLC 16k 256Gb/CE 256Gb/die 2Plane/die
Controller : PS5012-E12
CPU Clk : 666
Flash CE : 16
Flash Channel : 8
Interleave : 2
Flash CE Mask : [++++++++ ++++++++ -------- --------]
FlashR Clk,MT : 666
FlashW Clk,MT : 666
Die per CE : 1
Block per CE : 2012
Page per Block: 1152
Bit Per Cell : 3(TLC)
DRAM Size,MB : 256
DRAM Clock,MHz: 1600
DRAM Type : DDR3
PMIC Type : PS6102/PS6106
PE Cycle Limit: 3000
SLC cache : 0x600000/0x400000
ONFI : YMTC YMN08TE1W00C3B (2020-43) [9403]

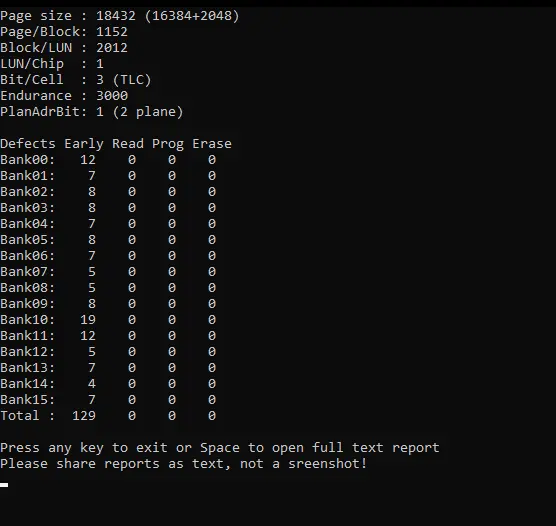

Page size : 18432 (16384+2048)
Page/Block: 1152
Block/LUN : 2012
LUN/Chip : 1
Bit/Cell : 3 (TLC)
Endurance : 3000
PlanAdrBit: 1 (2 plane)
Defects Early Read Prog Erase
Bank00: 12 0 0 0
Bank01: 7 0 0 0
Bank02: 8 0 0 0
Bank03: 8 0 0 0
Bank04: 7 0 0 0
Bank05: 8 0 0 0
Bank06: 7 0 0 0
Bank07: 5 0 0 0
Bank08: 5 0 0 0
Bank09: 8 0 0 0
Bank10: 19 0 0 0
Bank11: 12 0 0 0
Bank12: 5 0 0 0
Bank13: 7 0 0 0
Bank14: 4 0 0 0
Bank15: 7 0 0 0
Total : 129 0 0 0
Defects Early Read Prog Erase
Ce00Pl0: 8 0 0 0
Ce00Pl1: 4 0 0 0
Ce01Pl0: 4 0 0 0
Ce01Pl1: 3 0 0 0
Ce02Pl0: 5 0 0 0
Ce02Pl1: 3 0 0 0
Ce03Pl0: 6 0 0 0
Ce03Pl1: 2 0 0 0
Ce04Pl0: 3 0 0 0
Ce04Pl1: 4 0 0 0
Ce05Pl0: 4 0 0 0
Ce05Pl1: 4 0 0 0
Ce06Pl0: 4 0 0 0
Ce06Pl1: 3 0 0 0
Ce07Pl0: 2 0 0 0
Ce07Pl1: 3 0 0 0
Ce08Pl0: 3 0 0 0
Ce08Pl1: 2 0 0 0
Ce09Pl0: 4 0 0 0
Ce09Pl1: 4 0 0 0
Ce10Pl0: 12 0 0 0
Ce10Pl1: 7 0 0 0
Ce11Pl0: 8 0 0 0
Ce11Pl1: 4 0 0 0
Ce12Pl0: 2 0 0 0
Ce12Pl1: 3 0 0 0
Ce13Pl0: 4 0 0 0
Ce13Pl1: 3 0 0 0
Ce14Pl0: 2 0 0 0
Ce14Pl1: 2 0 0 0
Ce15Pl0: 4 0 0 0
Ce15Pl1: 3 0 0 0
Total : 129 0 0 0
. Ne kadar rahatsız eder peki kullanımda sizce?
